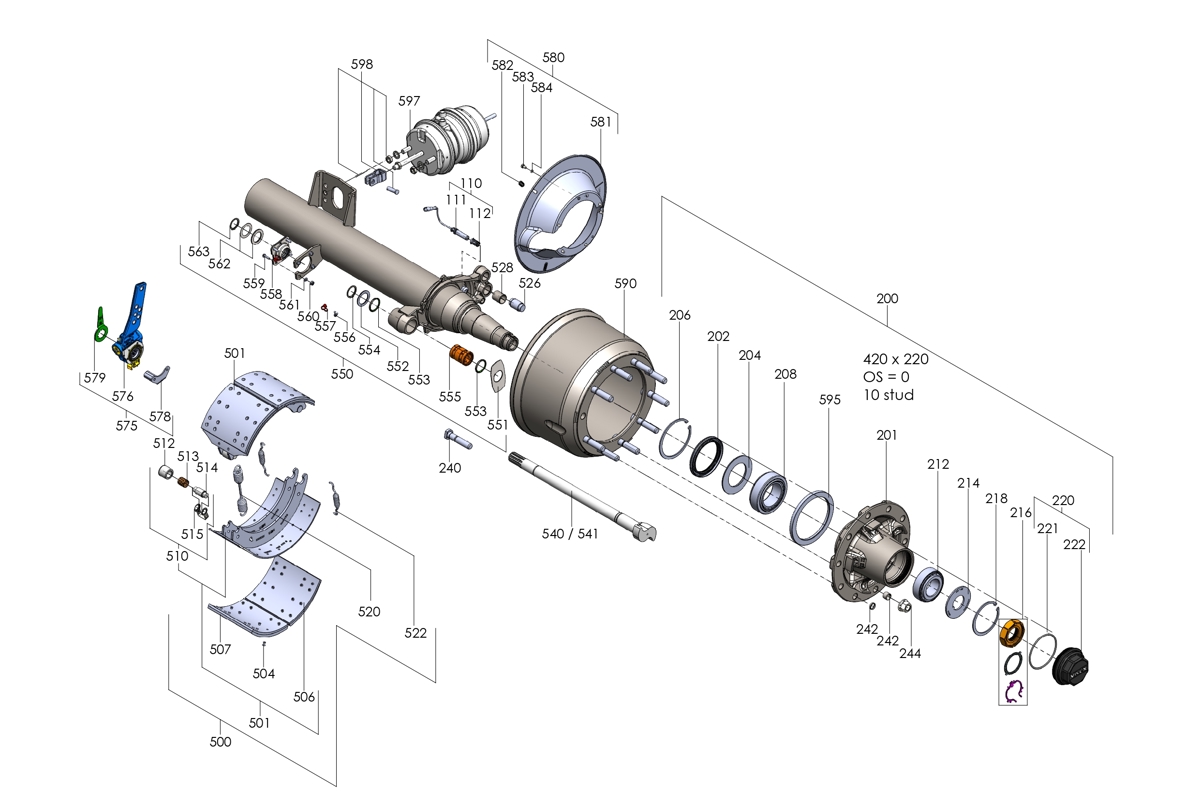

Drum Axle Parts 420x220 (13T)

Spare part number

Position Number Article Number Article Name Specifications Reference Weight (kg)
110 50 110 001 Sensor ABS complete per axle pos 111-113 441 032 963 2
200 50 200 301 Hub assembly 10 stud HD 420x220 OS=0 pos 201-222
202 50 202 001 Seal ø117xø153x16 0.26
204 50 204 004 Wear ring ø90xø144x11,55
206 50 206 001 Circlip ø150 0.14
208 50 208 001 Bearing inner Timken B-145649 2.72
212 50 212 001 Bearing outer Timken B-145662 1.86
214 50 214 001 Washer ø56xø120x5,4 0.38
216 50 216 007 Nut central multiple use M55x1,5 SW95
218 50 218 001 Circlip ø125 0.10
220 50 220 004 Hub cap HD set complete pos 221-222 (1x)
221 50 221 006 O-ring Ø125xØ5.3 NBR70 suitable with HD hubcap 0.02
222 50 222 008 Hub cap HD steel hub cap
240 50 240 007 Wheel bolt M22x1,5x105
242 50 242 001 Bush wheel centering ø24.2xø21.2x7 Single mounting 0.05
242 50 242 002 Bush wheel centering ø24.2xø21.2x18.2 Double mounting 0.05
244 50 244 003 Wheel nut M22x1,5 0.14
500 50 500 301 Brake shoe set per axle 420x220 pos 501/520/522
540 50 540 001 Camshaft L 420x220 L=604 7.00
540 50 540 009 Camshaft L 420x220 L=627 7.00
541 50 541 001 Camshaft R 420x220 L=604 7.00
541 50 541 009 Camshaft R 420x220 L=627 7.00
550 50 550 301 Camshaft bearing set per axle pos 551-563 420x220 1.00
575 50 575 002 Slack adjuster set per axle Haldex S-ABA pos 562-566,576-579
580 50 580 301 Dust cover set per axle 420x220 pos 581-58 3.00
590 50 590 301 Brake drum 10 stud 420x220
595 50 595 001 Exciter ring drum ø206x13-100 1.04
597 50 597 010 Brake cylinder diaphragm 30" (incl. 50598003) 4231079000 4.97
597 50 597 012 Brake cylinder double diaphragm 30"/30" (incl. 50598003) 9253771210 10.97
598 50 598 003 Forkhead set 423 000 534 2 0.50
Grease
001 50 001 003 Paste anti fretting Optimol White 0.10
Tools
034 50 034 006 Socket central nut multiple use SW95
034 50 034 008 Spindle thread tool M55x1,5
