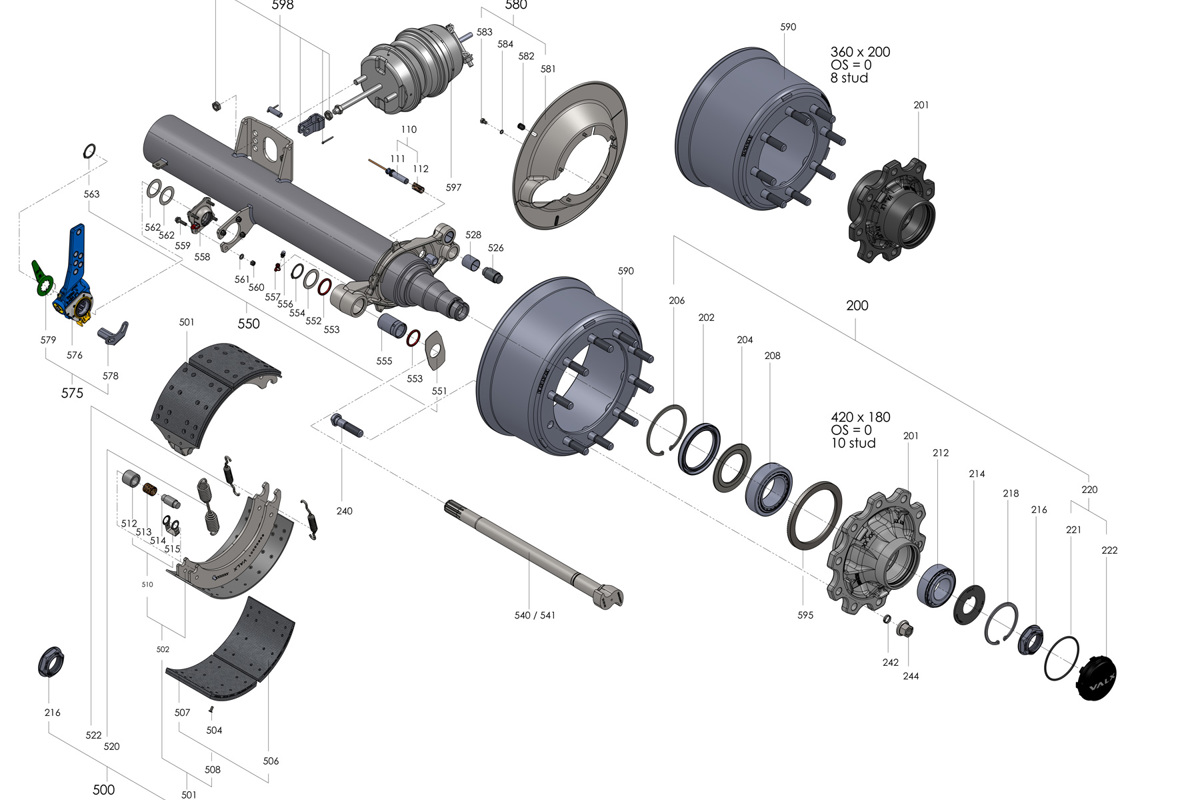

9T Drum Brake Axle
Spare part number
| Position Number | Article Number | Article Name | Specifications | Weight (kg) |
|---|---|---|---|---|
| 110 | 50 110 001 | Sensor ABS complete per axle | pos111-112-113 (grease) (2x) 441 032 963 2 | |
| HUB | ||||
| 200 | 50 200 002 | Hub assembly 10 stud | 420x180 OS=0 pos 201-222 | 29.50 |
| 200 | 50 200 003 | Hub assembly 8 stud | 360x200 OS=0 pos 201-222 | 35.00 |
| 202 | 50 202 001 | Seal | ø117xø153x16 SKF 001267 | 0.26 |
| 204 | 50 204 002 | Wear ring | ø90xø144x11,65 | 0.52 |
| 206 | 50 206 001 | Circlip | ø150 | 0.14 |
| 208 | 50 208 001 | Bearing inner | Timken B-145649 | 2.72 |
| 212 | 50 212 001 | Bearing outer | Timken B-145662 | 1.86 |
| 214 | 50 214 001 | Washer | ø56xø120x5,4 | 0.38 |
| 216 | 50 216 001 | Nut central single use | M55x1,5 SW=75 | 0.45 |
| 218 | 50 218 001 | Circlip | ø125 | 0.10 |
| 220 | 50 220 001 | Hub cap complete | pos 221-222 (6x) | |
| 220 | 50 220 002 | Hub cap hubodometer complete | pos 221-222 (1x) | |
| 221 | 50 221 003 | O-ring | pos 221 | 0.01 |
| 222 | 50 222 005 | Hub cap | pos 222 | 0.13 |
| 222 | 50 222 020 | Hub cap PSI prepared | pos 222 with insert and breather valve | 0.13 |
| 240 | 50 240 004 | Wheel bolt | M22x1,5x95 | 0.45 |
| 242 | 50 242 001 | Bush wheel centering | ø24.2xø21.2x7 | 0.05 |
| 244 | 50 244 003 | Wheel nut | M22x1,5 | 0.14 |
| DRUM | ||||
| 500 | 50 500 003 | Brake shoe set per axle | 420x180 pos 501/520/522/216 | 39.00 |
| 500 | 50 500 004 | Brake shoe set per axle | 360x200 pos 501/520/522/216 | 29.70 |
| 540 | 50 540 001 | Camshaft L | 420x180 L=604 | 7.00 |
| 540 | 50 540 002 | Camshaft L | 360x200 L=604 | 7.00 |
| 541 | 50 541 001 | Camshaft R | 420x180 L=604 | 7.00 |
| 541 | 50 541 002 | Camshaft R | 360x200 L=604 | 7.00 |
| 550 | 50 550 001 | Camshaft bearing set per axle | pos 551-563 420x180/360x200 Prod Nr. < C22D**** | 1.00 |
| 550 | 50 550 006 | Camshaft bearing set per axle | pos 551-563 420x180/360x200 Prod Nr. > C22E**** | 1.00 |
| 575 | 50 575 001 | Slack adjuster set per axle | Haldex S-ABA pos 562-563,576-579 | 7.00 |
| 580 | 50 580 001 | Dust cover set per axle | 420x180 pos 581-584 | 3.00 |
| 580 | 50 580 002 | Dust cover set per axle | 360x200 pos 581-584 | 2.00 |
| 590 | 50 590 001 | Brake drum 10 stud | 420x180 | 42.50 |
| 590 | 50 590 003 | Brake drum 8 stud | 360x200 | |
| 595 | 50 595 001 | Exciter ring drum | ø206x13-100 | 1.04 |
| CYLINDER DRUM | ||||
| 597 | 50 597 007 | Brake cylinder double diaphragm | 24"/30" (incl. 50598001) 9253761230 | 9.90 |
| 597 | 50 597 008 | Brake cylinder diaphragm | 20" (incl. 50598001) 4231059000 | 3.17 |
| 597 | 50 597 009 | Brake cylinder diaphragm | 24" (incl. 50598001) 4231061500 | 3.47 |
| 597 | 50 597 010 | Brake cylinder diaphragm | 30" (incl. 50598001) 4231079000 | 4.97 |
| 597 | 50 597 011 | Brake cylinder double diaphragm | 20"/30" (incl. 50598001) 9253751000 | 9.57 |
| 597 | 50 597 012 | Brake cylinder double diaphragm | 30"/30" (incl. 50598001) 9253771210 | 10.97 |
| 598 | 50 598 003 | Forkhead set | 423 000 534 2 | 0.50 |
| GREASE | ||||
| 001 | 50 001 003 | Paste anti fretting | Optimol White RV | 0.10 |
| TOOLS | ||||
| 034 | 50 034 001 | Socket nut central | SW=75 1" | 2.45 |
| 034 | 50 034 008 | Spindle thread tool | M55x1,5 |
