Drum HD Axle Parts (9T)

Spare part number

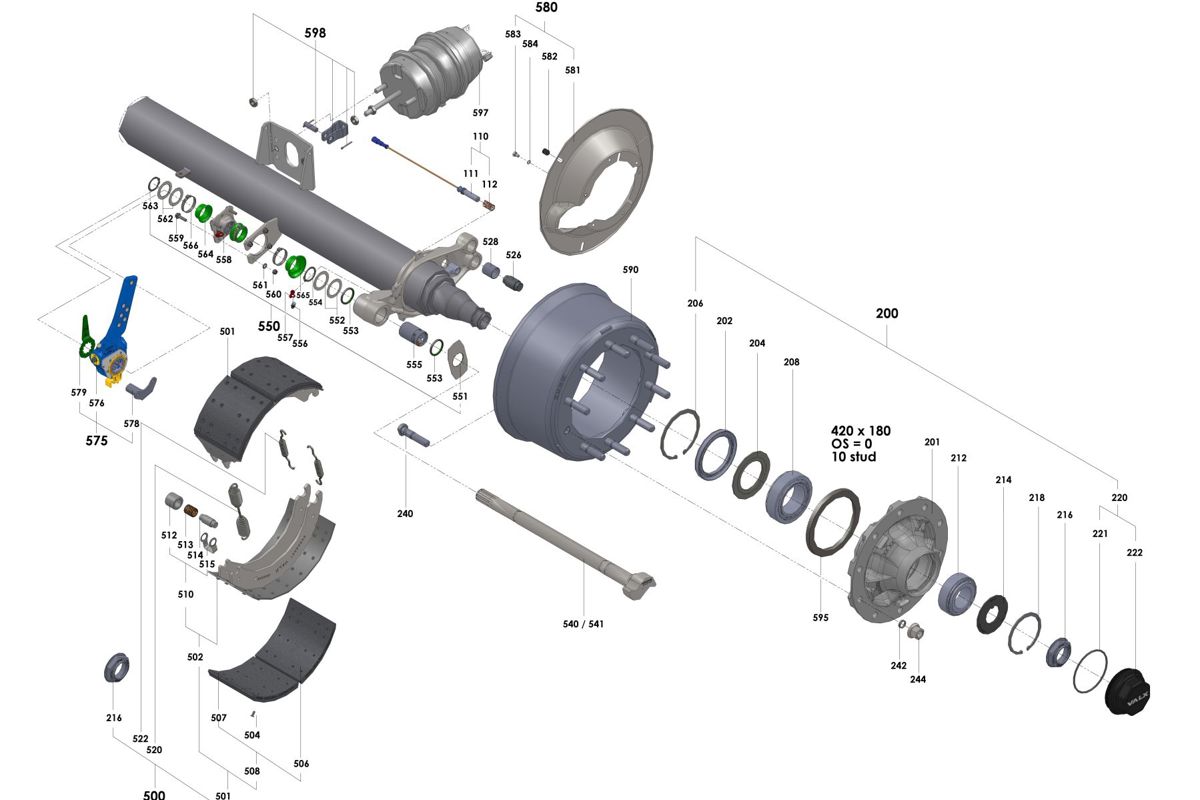

Exploded View Hd Drum Axle Valx2
Click to enlarge
Position Number Article Number Article Name Specifications Reference Weight (kg)
110 50 110 001 Sensor ABS complete pos 111-112-113 (grease) (2x) 441 032 963 2
200 50 200 005 Hub assembly 10 stud 420x180 OS=0 pos 201-222 30.10
202 50 202 001 Seal ø117xø153x16 SKF 001267 0.26
204 50 204 002 Wear ring ø90xø144x11,65 0.52
206 50 206 001 Circlip ø150 0.14
208 50 208 001 Bearing inner Timken B-145649 / SKF BT1-0516 B 2.72
212 50 212 001 Bearing outer Timken B-145662 / SKF BT1-0517 B 1.86
214 50 214 001 Washer ø56xø120x5,4 0.38
216 50 216 001 Nut central single use M55x1,5 SW=75 0.45
218 50 218 001 Circlip ø125 0.10
220 50 220 004 Hub cap complete pos 221-222 (1x) HD
221 50 221 006 O-ring Suitable with HD hub cap 0.02
222 50 222 008 Hub cap HD steel hub cap 0.71
240 50 240 004 Wheel bolt M22x1,5x95 0.45
242 50 242 001 Bush wheel centering ø24.2xø21.2x7 0.05
244 50 244 003 Wheel nut M22x1,5 0.14
500 50 500 003 Brake shoe set per axle 420x180 pos 501/520/522/216 39.00
540 50 540 001 Camshaft L 420x180 L=604 7.00
541 50 541 001 Camshaft R 420x180 L=604 7.00
550 50 550 002 Camshaft bearing set per axle HD pos 551-566 420x180 Prod Nr. <C22D**** 2.00
575 50 575 001 Slack adjuster set per axle Haldex S-ABA pos 562-563,576-579 7.00
580 50 580 001 Dust cover set per axle 420x180 pos 581-584 3.00
590 50 590 001 Brake drum 10 stud 420x180 42.50
595 50 595 001 Exciter ring drum ø206x13-100 1.04
597 50 597 007 Brake cylinder double diaphragm 24"/30" (incl. 50598001) 9253761030 9.90
597 50 597 008 Brake cylinder diaphragm 20" (incl. 50598001) 3.17
597 50 597 009 Brake cylinder diaphragm 24" (incl. 50598001) 4231061500 3.47
597 50 597 010 Brake cylinder diaphragm 30" (incl. 50598001) 4.97
597 50 597 011 Brake cylinder double diaphragm 20"/30" (incl. 50598001) 9.57
597 50 597 012 Brake cylinder double diaphragm 30"/30" (incl. 50598001) 10.97
598 50 598 001 Forkhead assembly 423 000 534 2
598 50 598 002 Forkhead sleeve set assembly 423 000 535 2 0.50
550 50 550 007 Camshaft bearing set per axle HD pos 551-556 420x180 Prod Nr. >C22E**** 2.00
Grease
001 50 001 003 Paste anti fretting Optimol White RV 0,10
Tools
034 50 034 001 Socket nut central SW=75 1"
034 50 034 003 Hub cap tool HD
034 50 034 008 Spindle thread tool M55x1,5
