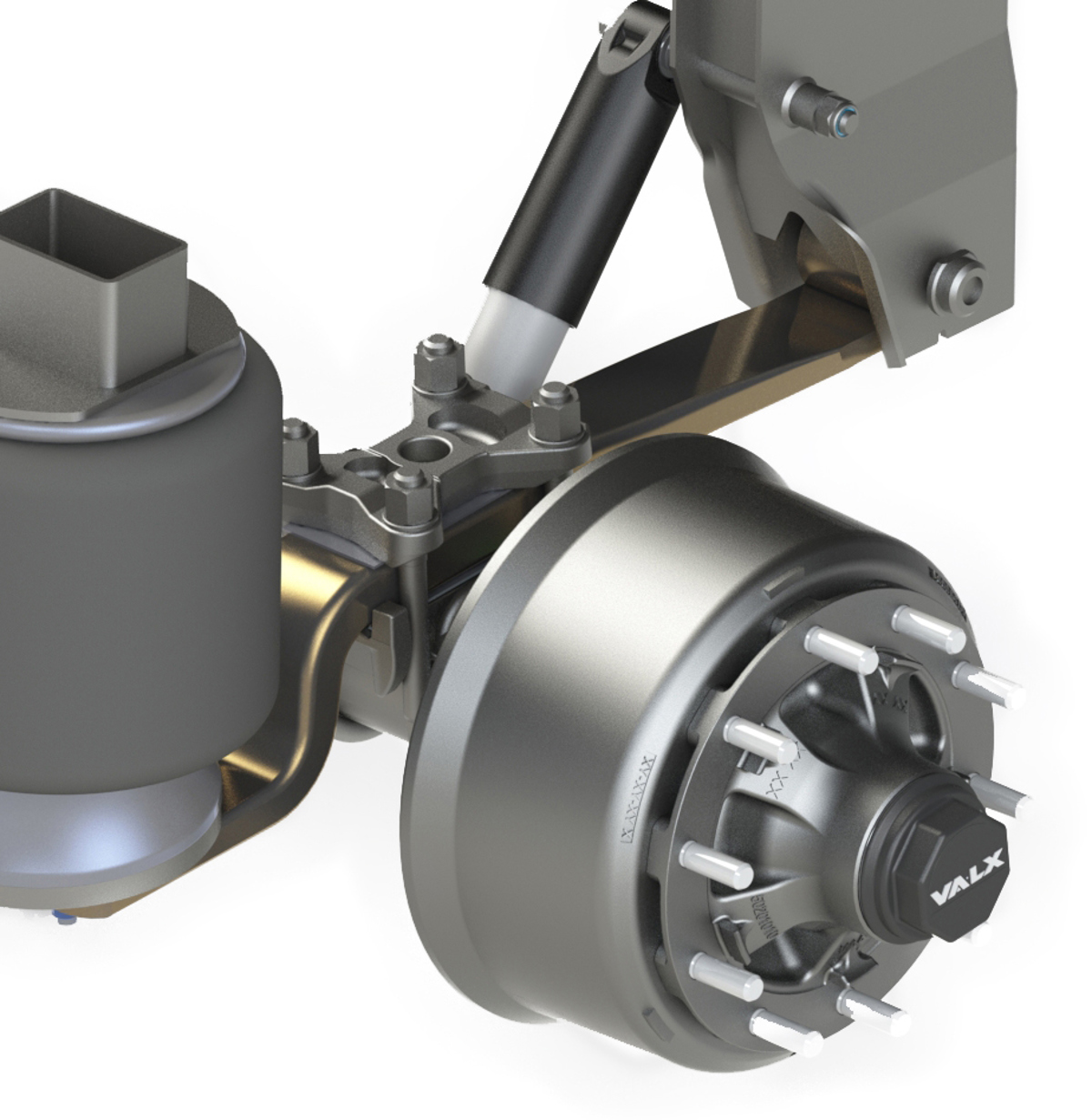

5P M AXL

Introduction

The M-AXL axle is equipped for extreme endurance. The thicker axle beam and improved S-cam seals are perfect for lifelong off-road usage.



Main Features

  • HD steel hubcap and steel air suspension pistons
  • HD trailing arms with steel-rubber-steel pivot bushes
  • HD closed hanger brackets with special wear plates
  • Shock absorbers with a wide range of operating temperatures
  • The casted bracing brackets ensure that the side forces are guided into the chassis through the center of the pivot bolt, preventing an additional bending moment in the hanger brackets
  • Viton® seals for high working temperatures and optimized internals for low ambient temperatures
  • No need for catch straps or rapid venting, with the shock absorber functioning as the stroke limitator

M-AXL Technical specifications

Air springs Long stroke (for increased axle travel): 350mm
Air springs offset 30/50/95mm
Spring U-bolt M24 (cold-formed, high strength)
