Spare part number

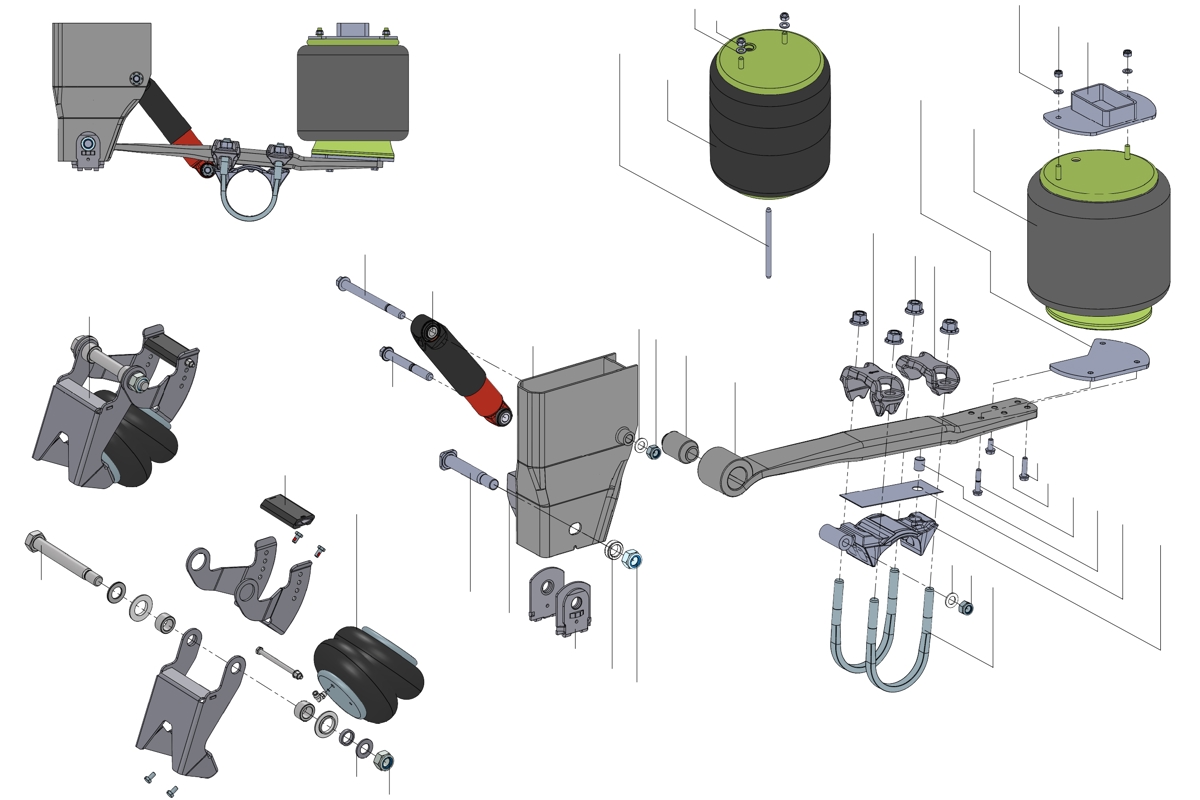

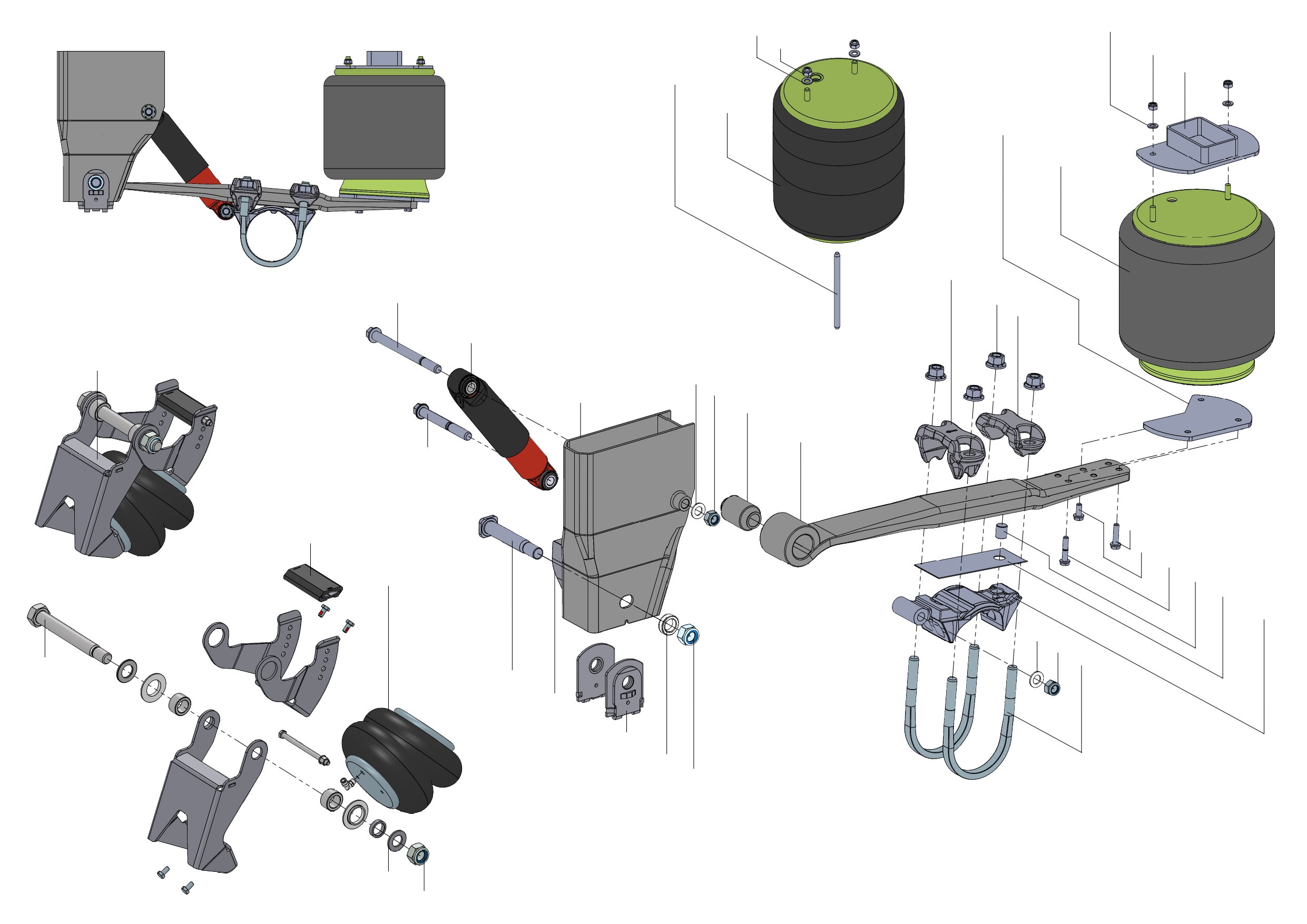

Mbs F Poster Highquality
Click to enlarge
Position Number Article Number Article Name Specifications Reference Weight (kg)
010 80 010 009 Hangerbracket H=335 UT001C88A335
010 80 010 011 Hangerbracket H=390 UT001C88A390
010 80 010 013 Hangerbracket H=435 UT001C88A435
010 80 010 014 Hangerbracket H=460 UT001C88A460
020 80 020 050 Wear plate 6mm UT010A19K_B 0.90
023 80 023 002 Brace weld-on UT996A17A 1.31
040 80 040 001 Dowel ø25x29 UT999A99Z 0.50
051 80 051 050 Axle seat L ø146 UT006L84Z 6.76
052 80 052 050 Axle seat R ø146 UT006R84Z 6.76
060 80 060 052 U-bolt plate 95 back ø146 UT005A86K 2.40
060 80 060 053 U-bolt plate 95 front ø146 UT005A87K 3.00
080 80 080 058 Trailing arm (incl. part 081) 95x49 F001A037PT75
081 80 081 003 Bush Silent bush C234264
092 80 092 050 U-Bolt ø146 MJ22x1.5 UBS22B029G_B 1.74
103 80 103 001 Nut MJ22x1.5 UBM22W012G 0.14
120 80 120 003 Shock absorber Black D8A91-2643W
120 80 120 006 Shock absorber Orange D8A91-2640W 4.60
130 80 130 050 Air spring ø300 DJ-6 US04100B. 6.00
131 80 131 003 Air spring ø350 E2ST2 US04028. 11.70
131 80 131 004 Air spring ø350 E1ST2 US07337.ST2
131 80 131 050 Air spring ø335 DJ-6 US04110B. 6.55
140 80 140 002 Bolt M20x2x240-10.9 C275128G 0.63
150 80 150 002 Nut M20x2-10 C330063 0.06
160 80 160 002 Bolt M20x2x175-10.9 C275126G 0.48
170 80 170 001 Washer M20 HV 315-390 C301389G 0.02
180 80 180 004 Pivot Bolt M27x2x186-8.8 UBB27W001ZN
190 80 190 002 Nut M27x2 8 DIN985 UBM27N006ZN 0.15
200 80 200 001 Spacer M27 UT009A09G 0.10
210 80 210 005 Bolt M12x1.75x60 8.8 C270614 0.13
210 80 210 052 Stud M12x1.75x206 8.8 UBB12W017G 0.14
220 80 220 051 Bolt M12x1.75x50 8.8 C267610
230 80 230 008 Bolt M12x1.75x30 8.8 C270602 0.04
240 80 240 001 Washer M12 DIN125A C301348 0.01
250 80 250 001 Nut M12x1.75 DIN985 C330021 0.02
290 80 290 050 Zinc plate UT999A124Z 0.36
300 80 300 052 Air spring offset plate Offset 50mm ø350 UT003A05K
380 80 380 007 Pedestal H=50 UT011A02A042
380 80 380 013 Pedestal H=70 UT011A02A062
Axle Lift
110 80 110 003 Washer M27 UBR27N001G
180 80 180 003 Pivot bolt M27 C401044
190 80 190 002 Nut M27 UBM27N006ZN 0.15
005 81 005 001 Air spring US06910F 2.90
020 81 020 003 Bump UT999002A14C
100 81 100 014 MBS-F axle lift AL-462 UR700145H.
